Matrix SATATYA
Turret Cameras
Cyber Secure Surveillance

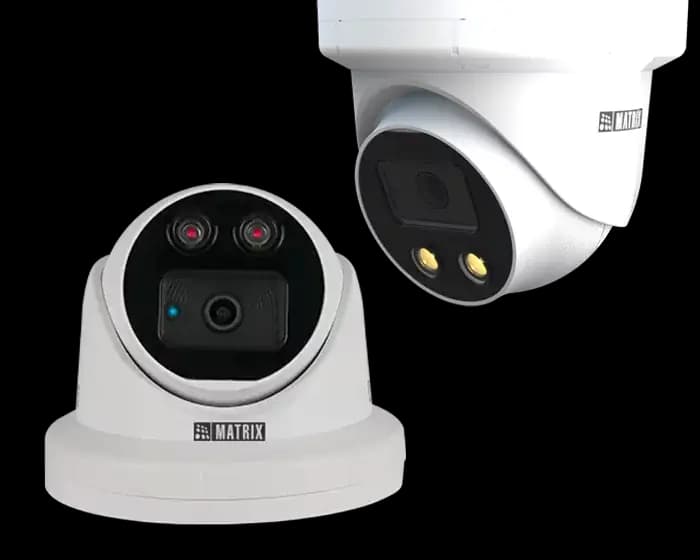

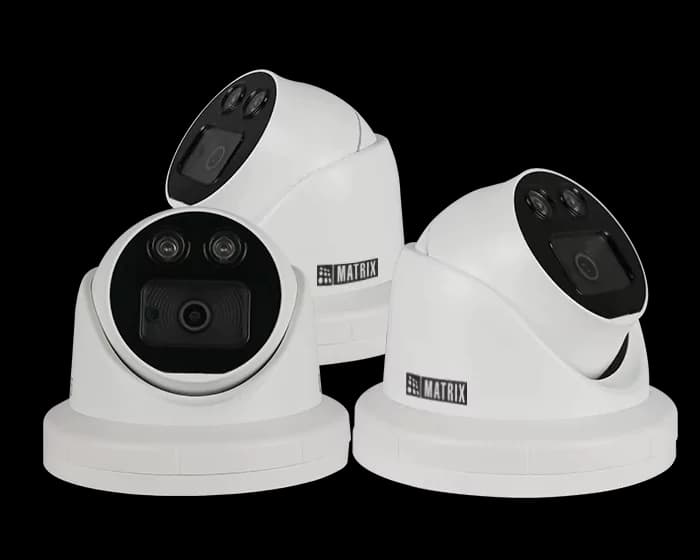

Matrix Turret Network Cameras feature a ball-and-socket design enabling manual viewing angle adjustment. Available in IR LED and Warm LED variants, these cameras deliver clear surveillance in low-light conditions with cybersecurity protections including secure boot, signed firmware, TLS 1.2 streaming, and AES 256 encryption.
Key features
- Revolutionary low-light color imaging technology, day or night
- SONY STARVIS Back Illuminated Sensor; IR LED range up to 30m; Warm LED supplement for color in darkness
- Secure boot, signed firmware, TLS 1.2 streaming, AES 256 encryption
- Ball and Socket Design with effortless rotation for easy manual positioning
- 120dB True WDR with balanced exposure and >70dB SNR
- Wide 125° field of view with quad stream support
- Smart streaming with multiple bitrates reduces storage/bandwidth by up to 50%
- Motion, tamper, intrusion, tripwire, and time-triggered analytics
Specifications
| Resolution (2MP/5MP/8MP) | 1920x1080 / 2592x1944 / 3840x2160 |
|---|---|
| Sensor | 1/2.8" SONY CMOS (STARVIS) |
| Min. Illumination (Color) | 0.01 Lux @F1.2 (2MP/5MP); 0.05 Lux @F1.6 (8MP) |
| Focal Length Options | 2.8mm, 3.6mm, 4mm, 6mm (varies by model) |
| LED Range | Up to 30m |
| Pan/Tilt/Rotate | 0-360° / 0-75° / 0-360° |
| Video Compression | H.265, H.264, MJPEG |
| WDR | 120dB True WDR |
| SNR | >70dB |
| Power Supply | 802.3af (PoE) |
| Operating Temperature | -30°C to 60°C |
| Dimensions | Φ138.58 x 118.97 mm |
| Weight | 720g |
| Certifications | CE, IP67, IK10, FCC, ONVIF, NEMA 4x |
Specifications sourced from Matrix Comsec and may change without notice. Contact us to confirm the exact model configuration.
