Matrix SATATYA
Project Dome Cameras
Vandal-resistant Cameras for Complete Security

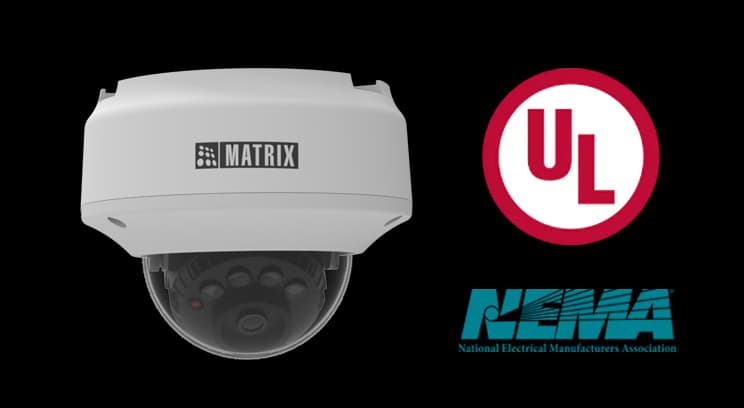

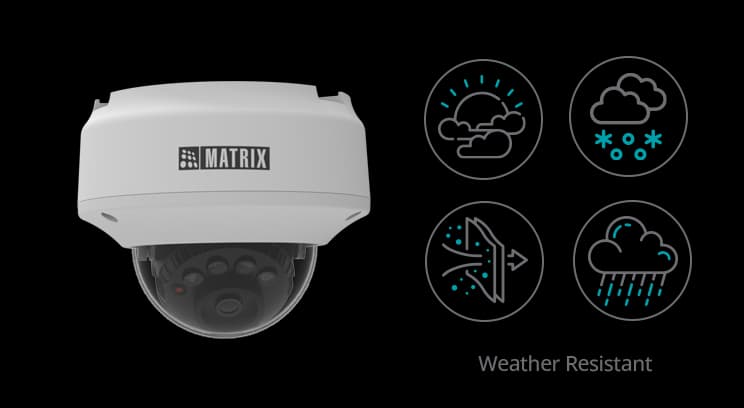

Matrix Project Series Dome Network Cameras are built for tough environments with ceiling-mount design, extended IR range, and SONY STARVIS sensors for clear low-light video. They feature vandal-resistant construction, NEMA certification, and cybersecurity measures for reliable surveillance in warehouses, factories, and public spaces.
Downloads & datasheets
Key features
- SONY STARVIS Back Illuminated CMOS sensor for low-light performance (0.01 lux)
- 120dB True WDR with >70dB SNR for balanced imaging
- Up to 50m IR range with 850nm LED wavelength
- 512GB edge recording support
- Intelligent video analytics (motion, tamper, intrusion, tripwire detection)
- 125° field of view
- H.265 video compression
- IK10 vandal-resistant, IP67 waterproof, NEMA 4X rated
Specifications
| Resolution | 1920 x 1080 (2MP) |
|---|---|
| Sensor | 1/2.8" SONY CMOS Back-Illuminated (STARVIS) |
| Focal Length Options | 2.8mm, 3.6mm, 6mm |
| Minimum Illumination | 0.01 Lux (Color, F1.2, AGC ON); 0 Lux (Monochrome) |
| IR Range | Up to 50m |
| WDR | True WDR (120dB) |
| SNR | >70dB |
| Video Compression | H.265, H.264, MJPEG |
| Bitrate Range | 128 kbps–8 Mbps |
| Power Supply | 12V DC; 802.3af (PoE) |
| Operating Temperature | -30°C to 60°C |
| Weight | 1.41 kg |
| Dimensions | Φ158 x 134 mm |
| Certifications | BIS, CE, FCC, NEMA 4X, IK10, IP67, STQC-ER |
Specifications sourced from Matrix Comsec and may change without notice. Contact us to confirm the exact model configuration.
