Matrix COSEC
COSEC ARC IO800
Compact Input Output Controller Devised for Superior Control
The COSEC ARC IO800 is a versatile input-output controller that extends access control system capabilities by managing auxiliary devices like alarms, sensors, and locks. It features compact design with PoE support for seamless installation in enterprises, factories, and institutions.
Key features
- 8 Auxiliary Input Ports and 8 Auxiliary Output Ports
- Secured Communication with SSL encryption
- IP to Door technology eliminating long cable runs

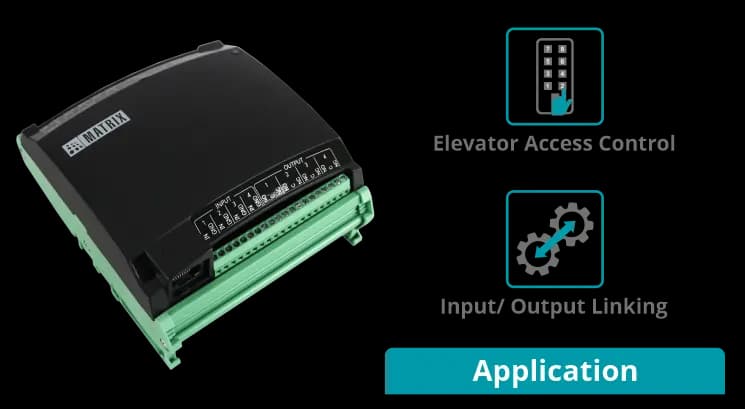

- Elevator Access Control with floor-wise management (up to 8 floors)
- Compact design for false ceiling installation
- 100,000 event storage capacity
- Ethernet/PoE and RS-485 communication
- Fire alarm and sensor integration capability
Specifications
| AUX IN Ports | 8 Input Ports (4 State supervised) |
|---|---|
| AUX OUT Ports | 8 Output Ports (28VDC @2A, Relay SPDT) |
| Communication | Ethernet (10/100 Mbps), RS-485, PoE (IEEE 802.3 af) |
| Event Buffer | 100,000 events |
| CPU | PIC32 Microcontroller |
| Flash Memory | 512 Kbytes |
| RAM Memory | 128 Kbytes SRAM |
| Operating Temperature | 0°C to +50°C |
| Humidity | 20% to 95% RH (Non-Condensing) |
| Power | 12 VDC @ 2A (Adapter); 12 VDC @1A (PoE) |
| Dimensions | 107 mm x 125.5 mm x 55 mm |
| Weight | 0.26 Kgs |
Specifications sourced from Matrix Comsec and may change without notice. Contact us to confirm the exact model configuration.
Interested in the COSEC ARC IO800?
We'll prepare a quotation and help you configure it for your site.
