Matrix SATATYA

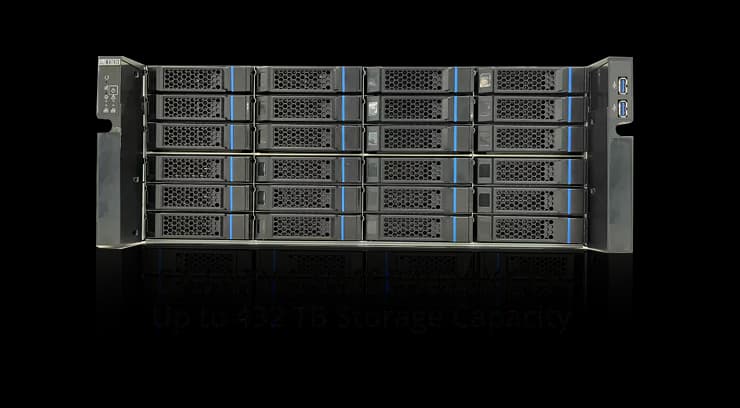

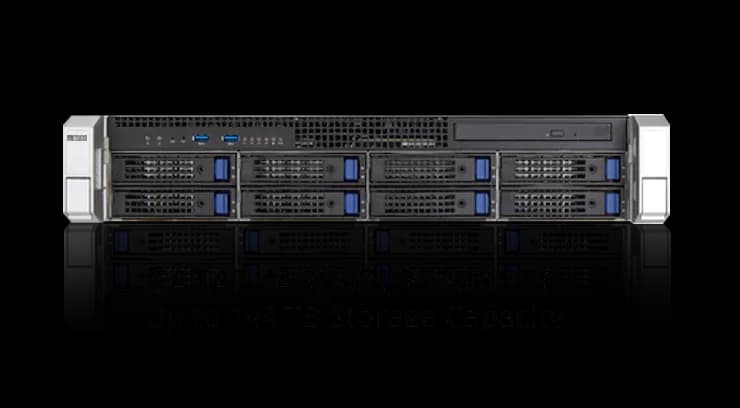

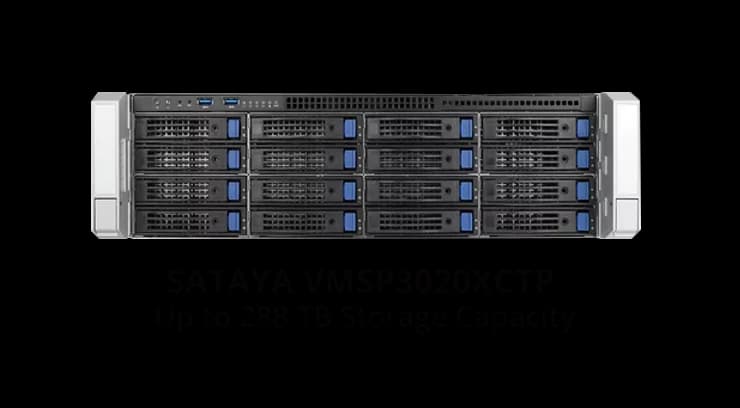

SATATYA Enterprise NVR (VMSP)
Server-grade Network Video Recorders with Inbuilt Video Management Software
Matrix Video Management Software Platform (VMSP) combines NVR and VMS functionalities, offering recording, playback, storage, centralized monitoring, advanced investigation tools, and real-time alerts in a cyber-secure, enterprise-grade solution with redundancy features for continuous performance.
Key features
- Up to 255 channel support on single platform
- Up to 432 TB storage capacity (18TB per SATA port)
- Hardware RAID 0/1/5/6/10/50/60 support
- Preloaded SATATYA SAMAS VMS with OS and database
- Redundant power supply (dual, hot-plug)
- N:1 redundant/failover recording server
- Interoperability with Matrix and ONVIF-compliant third-party cameras
- 4K live view and playback (up to 12MP support)
Specifications
| Processor (VMSP2020XCTP / VMSP3020XCTP / VMSP4020XCTP) | Intel Xeon E-2356G (6-core @3.2 GHz) / Intel Xeon Silver 4314 (16-core @2.4 GHz) / Intel Xeon Silver 4314 (16-core @2.4 GHz) |
|---|---|
| Memory (VMSP2020XCTP / VMSP3020XCTP / VMSP4020XCTP) | 32GB DDR4 / 64GB DDR4 / 64GB DDR4 |
| SATA Channels (VMSP2020XCTP / VMSP3020XCTP / VMSP4020XCTP) | 8 Bay / 16 Bay / 24 Bay |
| Max Storage (VMSP2020XCTP / VMSP3020XCTP / VMSP4020XCTP) | 144TB / 288TB / 432TB |
| Chassis (VMSP2020XCTP / VMSP3020XCTP / VMSP4020XCTP) | 2U / 3U / 4U |
| Network (VMSP2020XCTP / VMSP3020XCTP / VMSP4020XCTP) | 2x 10GbE RJ45 / 2x 10GbE + 2x 1GbE / 2x 10GbE + 2x 1GbE |
| Local Decoding (VMSP2020XCTP / VMSP3020XCTP / VMSP4020XCTP) | 1x 1080P, 4x D1 / 1x 4K, 9x 1080P, 64x D1 / 1x 4K, 9x 1080P, 64x D1 |
| OS | Windows IoT Enterprise LTSC |
| IP Camera Support | Up to 255 channels |
| Resolution Support | 12MP, 8MP, 5MP, 3MP, 2MP, 720P, D1, CIF |
Specifications sourced from Matrix Comsec and may change without notice. Contact us to confirm the exact model configuration.
